130-02C
130-02C
Special Price
$70.21
Regular Price
$82.60
Availability:
Out of stock

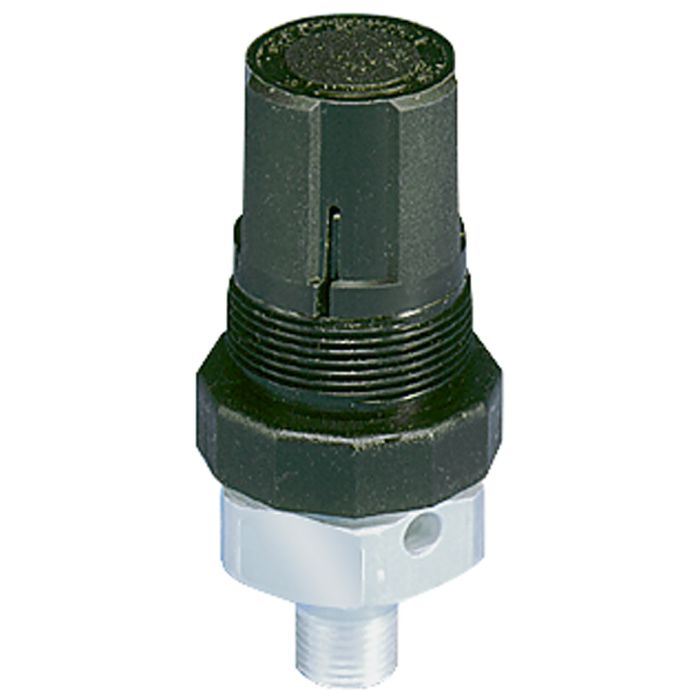

The 130 series is a diaphragm type relief valve that relieves excess pressure, thus protecting the pneumatic circuit or system. This compact, sensitive diaphragm-type relief valve can be used where gradual proportional relief is required. It contains a top adjustment knob that adjusts relief range, same as a miniature regulator. There are four spring ranges (0-15, 0-25, 0-50 and 0-100 PSIG) available.
Markets:
• Factory Automation
• Heavy Industries
Features/Benefits:
• Compact design saves space
• Top adjustment knob
• Durable brass body
• Protects pneumatic circuit or system
Applications:
• Industrial environment
• General pneumatic assembly
| Division | Pneumatic Division |
|---|---|
| Port Size | 1/4 inch |
| Body Material | Aluminum |
| Port Type | NPT (Male)│BSPP¦(Male) |
| Operating Temperature | 4 to 49 °C |
| Adjustment Mechanism | Polypropylene Push-Pull Locking Knob |
| Adjustment Screw Material | Steel, Zinc-plated (adjusting screw and spring) |
