73417BN4UN00N0HZ09P3
73417BN4UN00N0HZ09P3
$3,302.47
Availability:
Out of stock

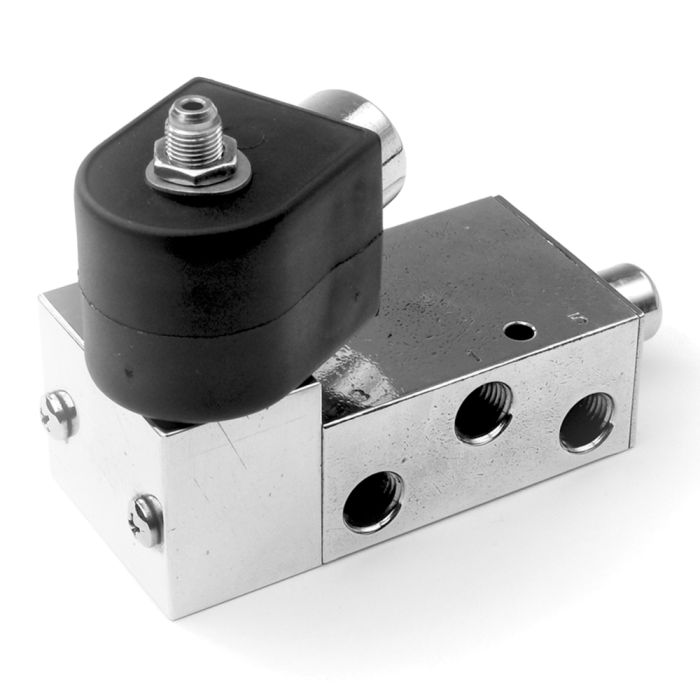

These time-tested 4-Way valves are used to actuate double acting cylinders and pilot larger process control valves in some of the world's most demanding applications. SIL 3 capable, with service down to -40°F / -40°C, these valves are known for their reliability; plus a myriad of compliant electrical options for North America and rest-of-world (RoW) make these valves a defacto global standard in process control markets.
| Weight | 1.000000 |
|---|---|
| Division | Fluid Control Division |
| Port Size | 1/2 inch |
| Body Material | Brass |
| Port Type | NPT |
| Specifications Met | LCIE 02 ATEX 6009 X |
| Seal Material | NBR - Low Temp |
| Actuation Type | Internal Pilot |
| Valve Type | 4-Way (5/2) |
| Media | Air |
