787-32

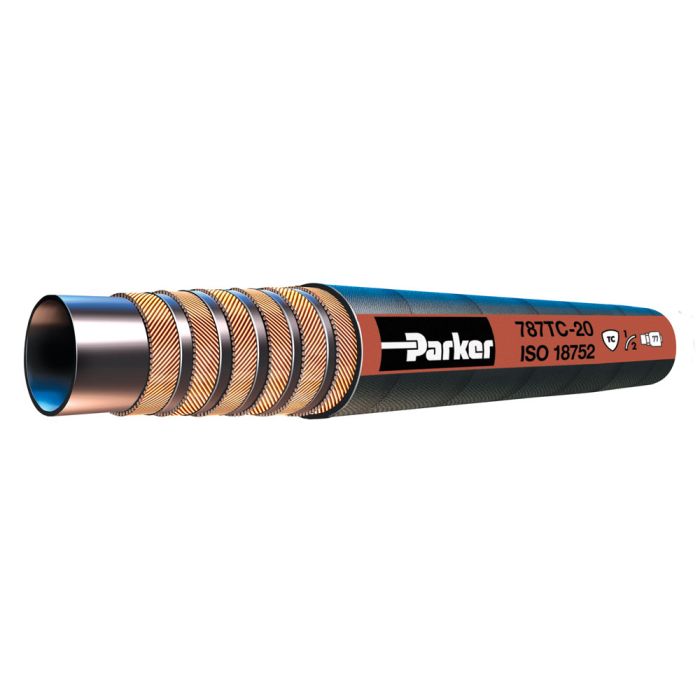

Parker’s 787 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 5,000 PSI in all sizes. The 787 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 787 hose is designed, built, and tested to meet ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.

Markets:

• Military

• Construction

• Forestry

• Oil Field Service

• Industrial

• Mining

Features/Benefits:

• Standard, ToughCover, SuperTough and Critical Protection cover options to prevent abrasion

• Half SAE bend radius for ease of installation and low force to flex

• 30% smaller O.D. compared to standard SAE spiral hose

• Twice the impulse/life – tested to 2,000,000 cycles

• 5,000 PSI constant working pressure in all sizes

• Lighter than the standard SAE spiral hose

Applications:

• Petroleum base hydraulic fluids and lubricating oils

Compatible Fittings:

• 43 Series fittings (for -4 to -6)

• 77 series fittings (for -8 to -32)
