METRIC PRESTOLOK

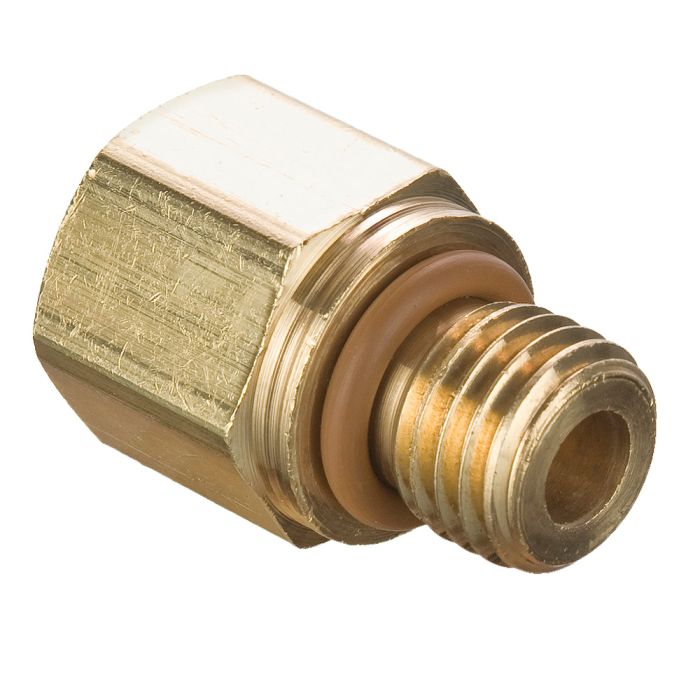

Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3. A Fluorocarbon O-ring is standard on all ISO port adapters so no thread sealant is needed, reducing maintenance and component replacement costs as a result of contaminating and damaging of components due to the sealant.
Markets:
• Industrial
• Construction
• Mobile
• Factory/process automation
Features/Benefit:
• All brass construction
• No thread sealant
• Fluorocarbon O-ring reduces maintenance and replacement costs as a result of contamination and damage to components due to sealant
• Long term sealing
• Improves assembly time
Applications:
• Air lines
• Water lines
• Cooling lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Weight | 0.000000 |
|---|---|
| Division | Fluid System Connectors Division |
| Shape | Male |
| Body Material | Brass |
| Specifications Met | na |
| Style | Metric Adapter |
| Maximum Operating Temperature | 150 °C |
| Minimum Operating Temperature | -40 °F |
| Maximum Operating Pressure | 69 bar |
| Connection 1 Tube O D Inch | 1/8 |
