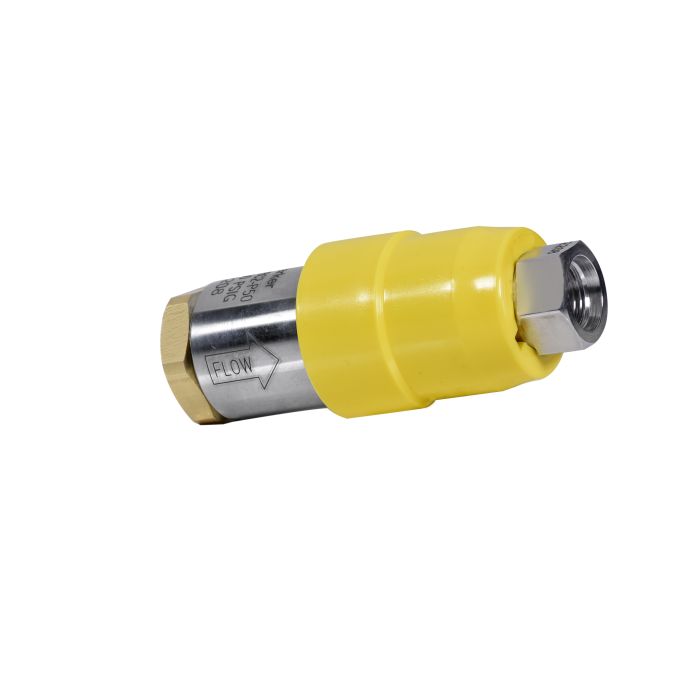

NGVBCN2-P50NR
NGVBCN2-P50NR
Special Price
$1,155.61
Regular Price
$2,311.22
Availability:
Out of stock
Parker’s NGV breakaway fill line provides an important safety feature for CNG dispensing systems. It allows the hose to safely disconnect, preventing damage to the dispenser in the event of a "drive off" and sealing the CNG in the fill line to effectively prevent leakage or hose whip.
Technical Characteristics:
•Materials: Brass & Stainless Steel
• Seal Material: Nitrile and Urethane
• Service Pressure: 3600 PSI
• Forces to Actuate: 60/140 lbs. to disconnect at any pressure up to operating
• Operating Temperature: -40°F to +150°F
Markets:
• Transportation
• Off-Highway Mobile
Features/Benefits:
• Certified to ANSI/NGV4.4/CSA12.54 standards (Part# NGVBCN2-P50 only)
• Exclusive Design
• Pressure Balanced
• Reliable, consistent performance
Compact size
• Reusable following breakaway (with minimal inspection)
Applications:
• CNG Fueling
Technical Characteristics:
•Materials: Brass & Stainless Steel
• Seal Material: Nitrile and Urethane
• Service Pressure: 3600 PSI
• Forces to Actuate: 60/140 lbs. to disconnect at any pressure up to operating
• Operating Temperature: -40°F to +150°F
Markets:
• Transportation
• Off-Highway Mobile
Features/Benefits:
• Certified to ANSI/NGV4.4/CSA12.54 standards (Part# NGVBCN2-P50 only)
• Exclusive Design
• Pressure Balanced
• Reliable, consistent performance
Compact size
• Reusable following breakaway (with minimal inspection)
Applications:
• CNG Fueling
| Weight | 0.000000 |
|---|---|
| Division | Quick Coupling Division |
| Body Material | Brass and Stainless Steel |
| Specifications Met | NA |
| Maximum Operating Temperature | 150 °F |
| Minimum Operating Temperature | -40 °F |
| Seal Material | Nitrile and Urethane |
| Maximum Operating Pressure | 3600 |
| Flow Rate | 2090 SCFM |
| Actuation Pressure | 60/140 lbs. to disconnect at any pressure up to operating |
