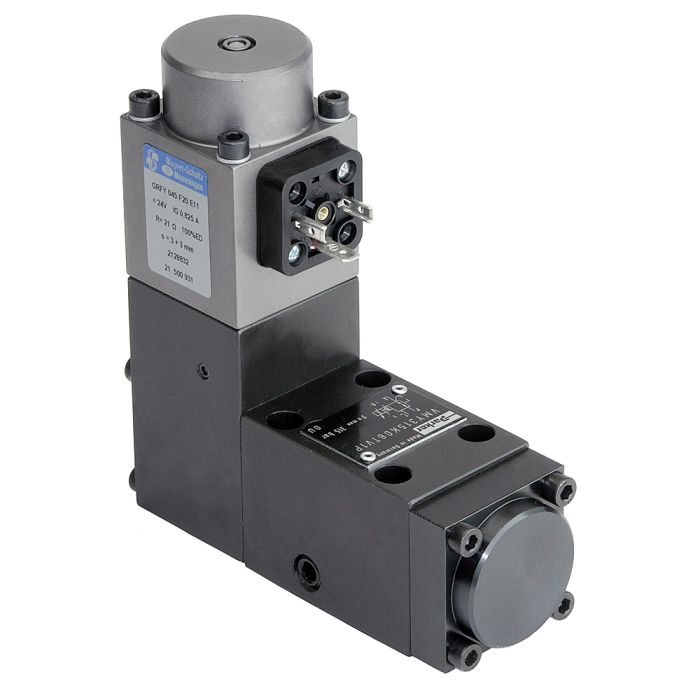

PARKER HYDRAULIC RELIEF VALVE
VBY210K06V
Special Price
$3,620.88
Regular Price
$4,827.84
Availability:
Out of stock
Parker's proportional pressure relief valves series VBY*K in size NG06 provide a very low leakage and thus an optimized energy efficiency. The spool type valves work extremely stable and precise.
Markets:
• Industrial
• Machine tools
Features/Benefits:
• Works stable and precise - for high process accuracy
• Low leakage - higher energy efficiency
• 5 pressure stages - enables fine adjustment
• Short delivery time for most versions - no warehousing necessary
• Subplate mounting acc. to ISO 5781
• Main stage spool type valve
• Pilot stage seated type valve
• External drain
• Proportional adjustment
Applications:
• Suitable for general hydraulic applications
• Machine tools, e.g. for clamping and other functions
Technical Functionality:
VBY*K is a proportional pressure relief valve with external drain. Because of the high pressure capability of the outlet port, this valve can also be used as sequence valve. In this case the external drain port Y has to be used. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400.
Markets:
• Industrial
• Machine tools
Features/Benefits:
• Works stable and precise - for high process accuracy
• Low leakage - higher energy efficiency
• 5 pressure stages - enables fine adjustment
• Short delivery time for most versions - no warehousing necessary
• Subplate mounting acc. to ISO 5781
• Main stage spool type valve
• Pilot stage seated type valve
• External drain
• Proportional adjustment
Applications:
• Suitable for general hydraulic applications
• Machine tools, e.g. for clamping and other functions
Technical Functionality:
VBY*K is a proportional pressure relief valve with external drain. Because of the high pressure capability of the outlet port, this valve can also be used as sequence valve. In this case the external drain port Y has to be used. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400.
Note: Pilot operated pressure relief valves series VBY and proportional pressure relief valves series VBY*K in size NG10 are not longer available from Parker, please refer to the recommended products for a replacement.
| Weight | 2.000000 |
|---|---|
| Port Connection | NG06 / CETOP 03 |
| Division | Hydraulic Valve Systems Division Europe |
| Body Material | Cast iron |
| For Fluid Type | Water glycol |
| Product Series | Pressure valve |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -20 °C |
| Seal Material | FPM |
| Weight | 2.4 kg |
