Clippard Instrument Laboratory is well-known as a quality manufacturer that provides thousands of standard and special pneumatic products to design engineers and manufacturers around the world. Some of the many products offered include Minimatic® valves, cylinders, fittings, modular components, push buttons, stainless steel cylinders, electronic manifold cards, circuit analyzers and pre-piped circuit manifold subplates. Special components designed for customer's OEM applications are also available. Clippard customers have grown to appreciate the high standards in the manufacture and testing of each Clippard valve and cylinder.

Keep Your Systems Running in Low Temperatures

Reliable Pneumatic Control for Cold-Weather Environments
In low-temperature conditions, moisture buildup and freezing can disrupt pneumatic systems and lead to unplanned downtime. Clippard pneumatic components, part of the trusted Clippard Minimatic® line and available through Wainbee, are designed to deliver consistent air control and dependable automation performance when cold weather is a factor.

Clippard Minimatic® Components
The Minimatic® line includes a wide range of compact pneumatic valves, manifolds, regulators, and control components engineered for precision, reliability, and long service life. When installed in protected or indoor systems, these components help reduce moisture-related issues that can cause sticking, freezing, and performance loss as temperatures drop.

Stable Performance in Cold Conditions
With precision-machined construction and proven designs, Clippard Minimatic® components support reliable air flow and repeatable motion in automation and control systems exposed to low ambient temperatures - helping maintain system stability throughout the winter season.

Key Benefits
- Reduces moisture-related freezing in pneumatic systems
- Maintains consistent air control in low-temperature environments
- Compact, precision-built components ideal for automation applications
- Best suited for protected and indoor installations exposed to cold conditions

Why Wainbee
Wainbee provides expert application guidance and access to the full Clippard Minimatic® product line, helping you select the right pneumatic components to minimize downtime and keep your systems running smoothly all winter long.

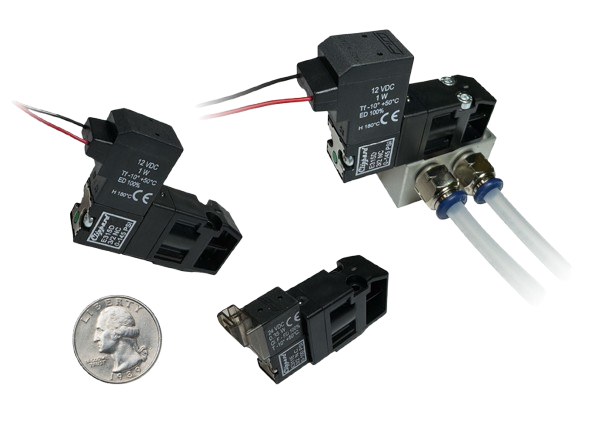

Small but Mighty - Clippard PHV Series Delivers Power in Compact Form

The PHV Series Booster Valve is a compact yet powerful solution for high-flow applications. With a pressure-piloted mechanism and manifold-mount compatibility, it delivers up to 400 l/min at 100 psig with a lightning-fast 10 ms nominal response time - deal for high-speed automation, large-volume dosing, and rapid venting.

WHY THE PHV SERIES STANDS OUT

High Flow in a Compact Design - Rapid actuation and short cycle times without taking up valuable space.

Energy Efficient - Low power draw with optimized coil designs, perfect for battery-powered or thermally sensitive systems.

Manifold-Mount Ready - Simplifies installation in dense assemblies and multi-valve setups.

Fast and Precise - 10 ms nominal response ensures reliable performance.

Versatile Safety - 3-way, normally-closed configuration for built-in safety and flexibility.

Engineered for medical devices, analytical instrumentation, packaging, and industrial automation, the PHV Series excels in vacuum generation, gas delivery, dosing systems, and quick venting, delivering unmatched speed, reliability, and efficiency in a compact package.

Unmatched Precision & Reliability for Life-Saving Medical Technologies

In life-saving medical devices, precision and reliability aren’t just important—they’re essential. Clippard valves have become a trusted solution in critical applications like artificial hearts and ventilators, where every pulse and breath matters.

In artificial hearts, they pilot diaphragm pumps to precisely replicate the natural rhythm of a heartbeat, ensuring consistent and reliable performance vital for patient survival. In ventilators, Clippard valves manage airflow, regulate pressure, and enable precise gas blending to deliver tailored respiratory support with exceptional accuracy.

Clippard’s patented Spider Technology transformed valve design with its minimalist flat armature and central plunger mechanism. Renowned for exceptional reliability and performance, the original EV series "spider" valve remains the industry standard for long life and minimal leakage.

Building on this legacy, Clippard offers a range of spider valves suited for various applications, particularly in medical devices, where their benefits shine:

Minimal Wear: Movement as small as 0.007" extends operational life.

Rapid Response: Ensures precise timing in critical applications.

Quiet Operation: Ideal for noise-sensitive environments like hospitals.

Energy Efficiency: Low power requirements suit portable devices.

Compact Design: Reduced internal volume saves space.

Unmatched Durability: Tested to endure over 1 billion cycles.

Exceptional Flow Control for Non-Corrosive Gases

The Cordis CHV series volume boosters deliver precise linear pressure control comparable to the CPC series, while boasting exceptional forward- and reverse-flow characteristics. These boosters are designed specifically for use with clean, dry, non-corrosive gases.

Perfect for use with costly inert gases, the CHV series is recommended for applications like pneumatic clutches and brakes, controlling accurate test pressure in test stands or production-line equipment, dancer arm-tension control, blanketing control in nitrogen and other inert gases, resistance welding tip force control, atomizing and fan control in painting or coating, low pressure with high accuracy and resolution at high flow, and variable vacuum – or vacuum through positive pressure control, either absolute or gauge reference.

• Smooth linear control
• Integrated downstream sensor feedback
• Analog and 3.3-volt serial command
• Compatibility with static or dynamic applications
• High resolution, with no integral bleed necessary to maintain it
• Proportional fill and bleed control
• Customizable pressure ranges and mounting

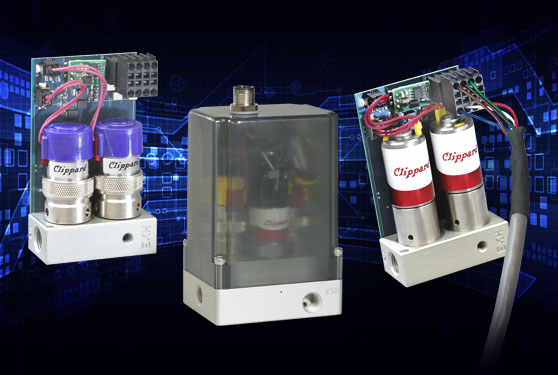

Precision Proportional Pressure & Flow-control Devices

The Cordis line by Clippard brings unparalleled performance and flexibility. Cordis makes future development opportunities more accessible and less complicated.

Electronic Pressure Controls
Electronic fill and bleed pressure controllers with a calibrated range from vacuum to 150 psig. No integral bleed required. Available with IP65-rated housing. These devices use Clippard’s proven DVP and EVP valves.

Electronic Pressure Controls with External Sensors
Also with an IP65 protection rating.

Dynamic Pressure Controllers
Compact, cost-efficient, and non-relieving devices that also work with DVP and EVP valves.
Calibrated range from zero to 150 psig.

High-volume Boosters
With phenomenal forward and reverse flow characteristics and substantially high flow capabilities.
Calibrated range also from zero to 150 psig.

High-pressure Controllers
These devices use Clippard’s high-pressure spider valves. IP65-rated housing and calibrated range from vacuum to 150 psig.

Custom Calibrated Pressure Sensors
Your business can use these sensors as standalone models or with Cordis pressure controls, and Clippard can customize the calibration around specific user needs with the help of our experts. Compatible with both standard and dynamic applications. Also with an IP65 protection rating.

Electronic Flow Controllers
With a turndown ratio of 50 to one, warmup of less than one minute, an H20 pressure drop of less than or equal to 14 inches, and optional integrated regulators.

Clippard Minimatic® Electronic Valves: Precision Engineering for Industry Excellence

Introducing Clippard Minimatic® electronic valves, precision-engineered with Clippard's patented valving principle. The DV Series, successor to the renowned EV Series, offers compactness, speed, and durability, with over 1,000,000,000 cycles!

Ideal for medical, analytical, packaging, and manufacturing industries, these valves boast high flow rates (up to 100 l/min for 2-way and 70 l/min for 3-way), leak-free operation, and rapid response times. With low heat rise, low power consumption, and a robust stainless steel "Spider" flat armature spring, they ensure reliability and longevity.

CE certified for compliance, these valves excel in precision control and high-volume applications, setting new standards in fluid control systems.

New! ES Series Electronic Valves

Compact size, long life, and exceptional leak resistance for improving reliability in a wide range of analytical and biomedical applications.

• Over 1 billion cycles (under ideal conditions)
• 0.01 atm sccm leak rate
• No threads in flow path
• Fast response - 5 to 10 ms (nominal)
• Close mounting - 7/8” on center, overall height less than 1”
• Customizable pressure ranges and mounting options
• Compatible with multiple inert gasses
• Ideal for ultra-low leak applications

The ES series features large cross-sectional O-rings, minimal leak points, and proven poppet designs. All mounting hardware is outside of the flow path for the ES, and no internal parts are threaded during assembly to reduce the possibility of contamination. The ES has the best performance-to-price ratio for low leak valves.

New! Cordis CP1 Series Dynamic Pressure Controller

A single, compact solution for maintaining pressure or flow in a closed loop application with ultra high resolution, accuracy, and repeatability. Clippard's Cordis CP1 single-valve pressure controller provides a compact, cost-effective solution for applications where a proportional valve is specified to maintain pressure or flow in a closed-loop application.

CP1 Dynamic Pressure Controller Benefits:

• Smooth, linear control
• Integrated internal feedback
• Multiple flow configurations
• Dynamic proportional pressure control
• Non-pulsing proportional fill
• Customizable pressure ranges and mounting options
• Compatible with multiple inert gasses
• Customizable calibrated ranges

Check out this quick video to learn more: New! Cordis CP1 Electronic Pressure Controller

New! Cordis CPS Pressure Sensors

Clippard's Cordis family now includes a new line of transducers. These sensors are conditioned and offer a customized calibration around your application requirements, allowing for a full-scale accuracy of 0.25% over the calibrated range. They can be used in conjunction with Clippard's Cordis pressure controller or as a standalone unit.

Multiple mounting options allow the user to place the sensor downstream or in a remote location from the pressure controller. This creates a quicker response and helps avoid any lag in the system. The manifold mount lends itself well to analytical value-added assemblies. All wetted materials are Oxygen compatible and manifold mounting eliminates any possible contamination during assembly.

CPS Pressure Sensor Benefits:

• Standalone or use in conjunction with Cordis Pressure Controls
• Downstream sensor feedback
• Multiple VDC signal outputs
• Static or dynamic applications
• Multiple electrical connection options
• Customizable pressure ranges and mounting options
• IP65 Protection Rating
• Temperature compensated

Clippard EV Mouse Valves Offer Low Vibration & Fast Response Time

Clippard's bestselling EV series of mouse valves. The compact, lightweight design of these cool-running valves is a deceptively simple arrangement that features a lifespan of more than 1,000,000,000 cycles, offers an unusually quiet, low-power operation, and enables easy mounting in small spaces.

One Hundred Per Cent Tested

There is only one moving part in each of the valves in the EV series: the “spider.” Its motion to operate the valve takes up only 0.007 of an inch. This is why the series has such a long life. The spider is moved by low-voltage DC inputs, which generates response times from five to ten milliseconds from only 0.67 of a watt of power. These valves are 100 per cent tested by the manufacturer to meet high performance standards.

The EV series is available in common voltages with 18-inch wire leads, and it comes with two easy mounting options. In-line base models have two #6-32-threaded, 7/32-inch-deep mounting holes, while manifold models each have a bottom stud measuring 5/32 of an inch long with a #10-32 thread, which fits Clippard standard and special manifolds, accessory valves, and subplates. The spanner holes in the valves enables tightening.

Other technical specifications of this valve family:

• Valve type: two- or three-way, normally open, or normally closed.
• Medium: clean, dry air (40-micron filter).
• Pressure range: Vacuum to 105 psig.
• Temperature range: Zero to 82 degrees Celsius.
• Operating range: 90 to 150 per cent of rated voltage.
• Voltage: 12 or 24 VDC.
• Materials: Nickel-plated brass body with nickel-plated steel housing, core, and spider.
• Seal material: Nitrile standard; FKM, EPDM, and silicone also available.
